Hydraulic Angle Notching Machine Model QJ160

Name: Hydraulic Angle Notching Machine Model QJ160
Brand: Auten
Price: 1 USD

Wholesale Hydraulic Angle Notching Machine Model QJ160 from china suppliers

Brand Name : Auten

Model Number : QJ160

Certification : ISO9001

Place of Origin : China

MOQ : 1 set

Payment Terms : L/C, T/T, Western Union

Supply Ability : 300 sets/year

Delivery Time : 30 days

Packaging Details : Nude

Price : Negotiable

Nominal pressure(kN) : 1000

Stroke of oil cylinder(mm) : 50

Times of stroke（min-1） : 20-25

Power of motor(kW) : 15

Throat depth(mm)　 : 325

Scope of angles(mm) : L40×40×3~L160×160×14

Rotary angles of corner cutting mould : 360° manual

Overall dimensions of corner cutting mould(mm) : 650×650×420

Fuel tank capacity (L) : 350

Contact Now

Hydraulic Angle Notching Machine Model QJ160

Applicable industry:

Used for cutting corner of angles and also used for punching & marking by installing of mould.

Hydraulic Angle Notching Machine Model QJ160

Product Feature:

1. It has an independent hydraulic power mechanism and electrical control system.

2. Using hydraulic shearing, stable performance and fast shearing speed.

3. The angle-cutting die of this equipment is a right-angle double-edged, rotary multi-directional angle-cutting die. To change the cutting angle of the angle steel, you only need to adjust the rotating die set, and the angle steel does not need to rotate the angle, so the angle is cut. The

operation area is small, the cutting angle error is small, and the production efficiency is high.

4. The equipment also has a typing and punching system. If you need to type and punch, just remove the corner cutting die and replace it with a typing or punching system to perform typing or punching operations.

5. The equipment is simple and convenient to operate, safe and reliable in performance, and high in production efficiency.

Hydraulic Angle Notching Machine Model QJ160

Parameter:

Model	QJ160
Nominal pressure(kN)	1000
Stroke of oil cylinder(mm)	50
Times of stroke(min-1)	20~25
Power of motor(kW)	15
Throat depth(mm)	325
Scope of angles(mm)	L40×40×3~L160×160×14
Rotary angles of corner cutting mould	360° manual
Overall dimensions of corner cutting mould(mm)	650×650×420
Fuel tank capacity (L)	350
Weight(ton)	About 4
Overall dimensions L×W×H(mm)	1800×1000×1500

Hydraulic Angle Notching Machine Model QJ160

Product Tags:

cnc plasma flame cutter

gantry cnc cutting machine

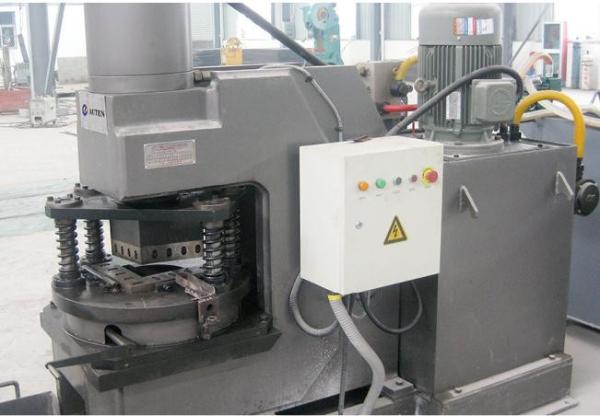

Hydraulic Angle Notching Machine Model QJ160 Images
